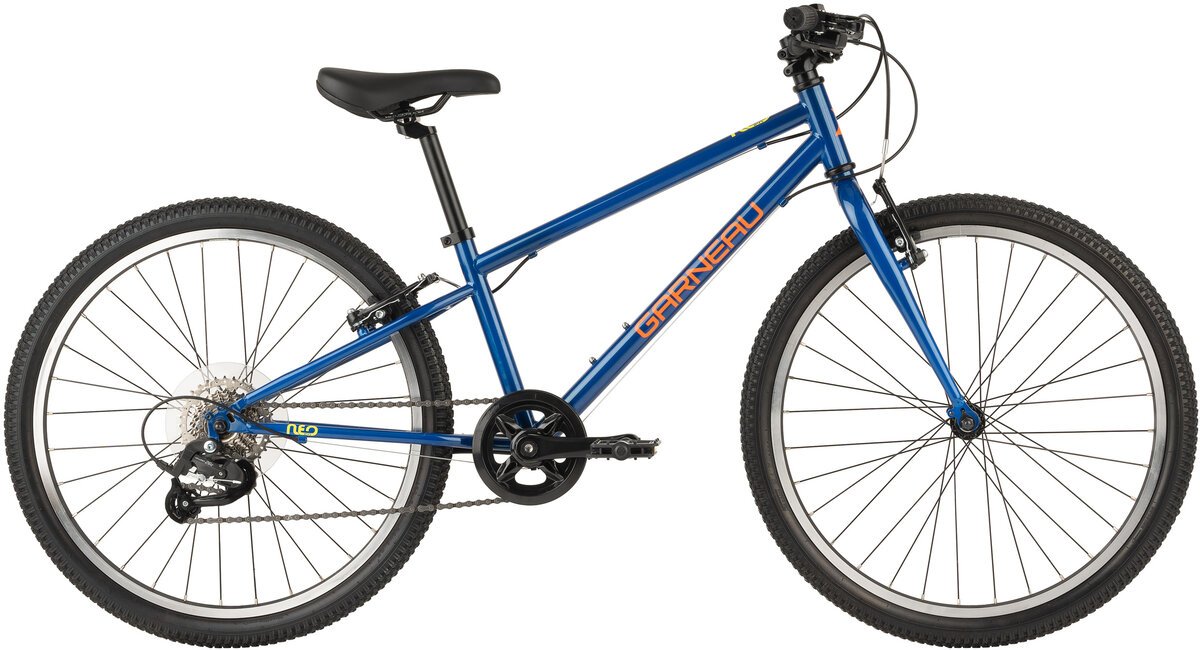

Garneau Neo 247
$484.99
Details
The NEO 247 bike is a great option for all-terrain riding. The handle is higher provides an optimal ergonomic position. It's fitted with a 7-speed Falcon GYR derailleur and has easy-to-use safe brake levers. Come and try it in the store. We will be happy to advise you.

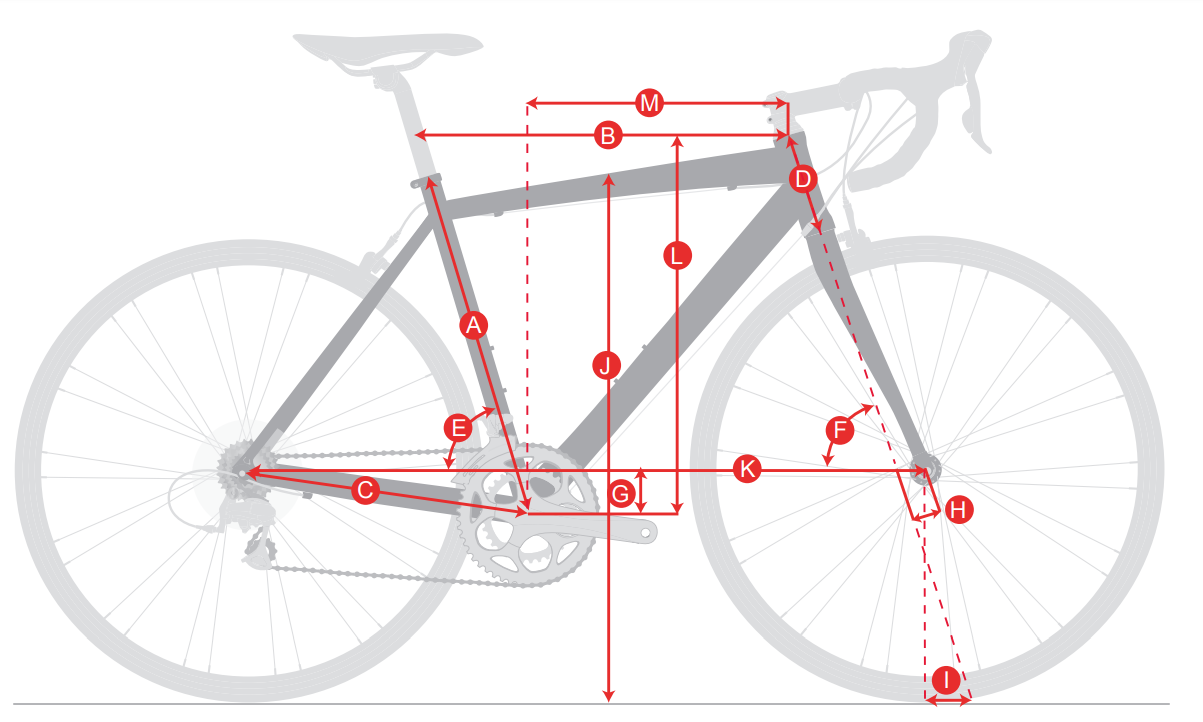

| Size | O/S | |
|---|---|---|
| A | Seat tube length (mm) | 300 |
| B | Effective top tube length (mm) | 527 |
| C | Chain stay length (mm) | 410 |
| E | Seat tube angle (°) | 72 |
| F | Head tube angle (°) | 70 |
| G | Bottom bracket drop (mm) | 38 |
| H | Fork offset (mm) | 45 |
| I | Trail (mm) | 60 |
| J | Standover height (mm) | 625 |
| K | Wheelbase (mm) | 988 |
| L | Stack (mm) | 472 |
| M | Reach (mm) | 373 |
Specs
| Frame | HTS steel |
|---|---|
| Fork | HTS steel |
| Wheels | Aluminum 24'' / SF freewheel hubs |
| Rims | Aluminum, 24'', 32h |
| Hubs |
Front: SF, Aluminum Rear: SF, Aluminum, freewheel |
| Spokes | 14g, Stainless steel |
| Tires | 24 x 1,95'' |
| Bottom Bracket | Square taper, 68 x 118mm |
| Crankset | Aluminum,3-pcs, 32T |
| Shifters | Microshift TS71-7, Trigger |
| Rear Derailleur | Microshift M26CS |
| Cassette/Freewheel | Freewheel 14-32T, 7-speed |
| Chain | KMC Z7 |
| Brakes | Aluminum, V-type |
| Brake Levers | Junior specific, aluminum/resin |
| Handlebars | Aluminum, 40mm rise, Ø25.4 mm |
| Tape/Grips | Garneau Junior |
| Stem | Aluminum, Ahead, 40mm, 10° |
| Headset | Threadless , 1 1/8'' |
| Seatpost | Aluminum, Ø25.4 mm |
| Saddle | Garneau Junior |
| Pedals | Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC |
|---|---|
| Navy Blue / 24-inch | 690222315459 |
